Send InquiryConnectors : 7/8 inch
About Connectors : 7/8 inch
Size : 7/8 inch
Orientation : Straight
Type : Female/Male
Pins : 3
Rate Operating Voltage : 230V
Rated Operating Current : 8A
Temperature Range : -25 +75 deg C
Protection : IP67
Grip Material : PVC
Contact Plating / Carrier : Cu-ZnGold Plated / Nylon 66
CouplingNut : Brass Ni-plated
Cable Length : 2 /3 / 5 / 10 m / custom built
Cable Type : 3core PVC Multi Strand
Sheath Colour : Black
Wire Cross Section : 16AWG
Cable Diameter : 7.8 +0.2mm
Get Latest PriceTell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Connectors Category

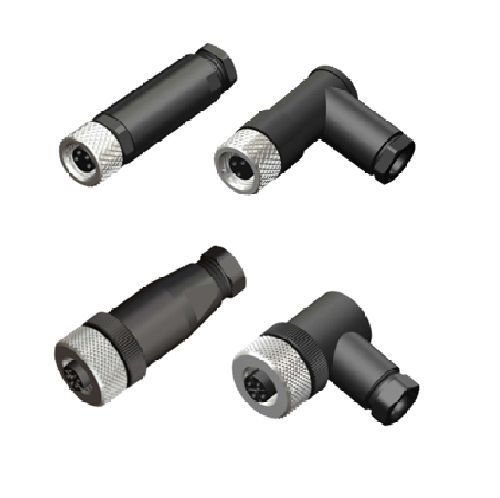

Connectors : User-wired - M08, M12
Price 250.00 INR / Piece
Minimum Order Quantity : 1 Piece
Color : Black
Cable Type : USB
Jacket Material : PVC
Connector : UserWired

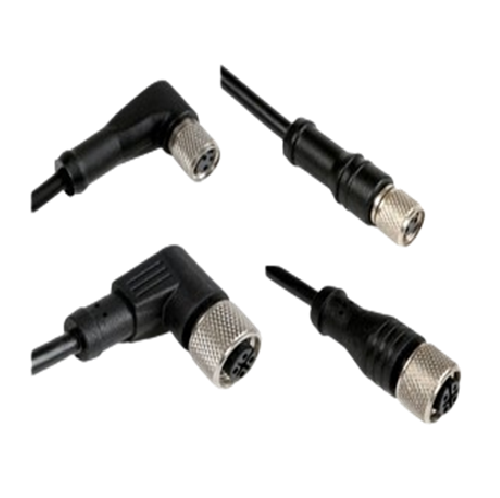

Connectors : M08, M12 - Pre-wired
Minimum Order Quantity : 1 Piece
Color : Black
Cable Type : other, 3 / 4/ 5 core PVC Multi strand
Jacket Material : PVC
